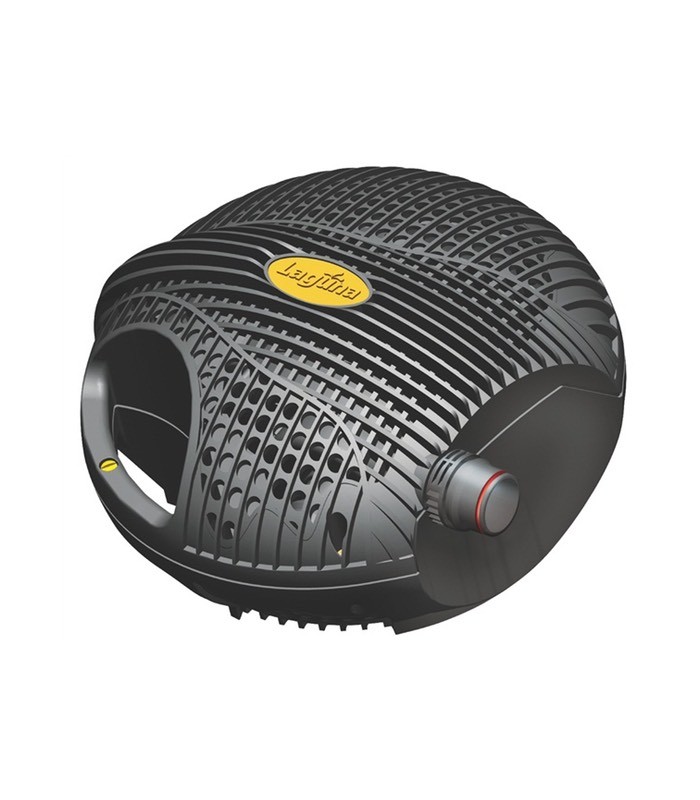

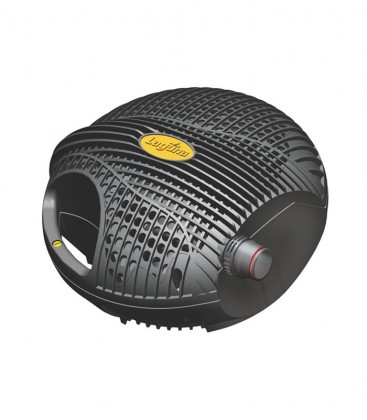

Laguna Max-Flo 600 Waterfall & Filter Pump (PT8232)

Laguna Max-Flo Applications

Laguna Max-Flo pump is ideal for use with filtration systems and for creating waterfalls and watercourses.

Laguna Max-Flo is an underwater pump used in the process of filtering ponds. Max-Flo is capable of pumping dirty pond water loaded with moderate solid debris to external filter system for filtration. This results in your pond water being reliably and continually filtered.

Max-Flo 600 specifications

• Maximum Flow Rate : 600 U.S. GPH (2200 LPH)
• Maximum Head Height : 5ft 10in (1.8 m)
• Maximum Pond Volume : 1200 U.S. gal (4400 L)
• Wattage : 32 W
• Power Cord Length : 16ft (5 m)
• Outlet Diameter : ¾in, 1in, 1 ¼in (19, 25, 32 mm)
• Solids Handling Size: 1/4in (6 mm)

Laguna Max-Flo in Action

Key Features of Laguna Max-Flo

• Completely submersible
• Easy to install
• Built in Smart Pump Technology (SPT) that provides internal self-regulation
• Pump powered by magnetic-driven motor
• Easy to assemble with an enhanced cage design
• Strainer cage protects impeller and assures continuous suction
• Solids handling capability
• Easy-to-use Click-Fit connectors for fast and easy hose connections
• Unique two-level suction capability, through upper and lower casing, for maximum water flow
• Pump cage can be easily attached to a fixed surface using the convenient keyhole cutouts, located on the bottom of the pump cage
• High stability as a result of extremely flat shape (low centre of gravity)
• Ergonomic pump handle for a safe grip and easy transportation

Smart Pump Technology (SPT)

The Max-Flo pump is easy to use and manage, thanks to Laguna's Smart Pump Technology (SPT) that improves pump performance, energy efficiency, and user friendliness.

SPT is an internal self-regulating system that tracks power consumption, hydraulics, and impeller direction to ensure powerful output and energy efficiency, so that only the required amount of power is used to operate the pump efficiently.

Magnetic-Driven Motor

The pump is powered by a magnetic-driven motor that is unmatched in the market for its ability to generate powerful and continuous water flow while consuming minimal electricity-the perfect combination of high pump efficiency and low energy costs.

Cage Design

Thanks to an enhanced cage design, Max-Flo is easy to assemble. Additionally, it comes with a stunning yellow colour that makes it visually outstanding and easy to spot when submerged in your pond.
