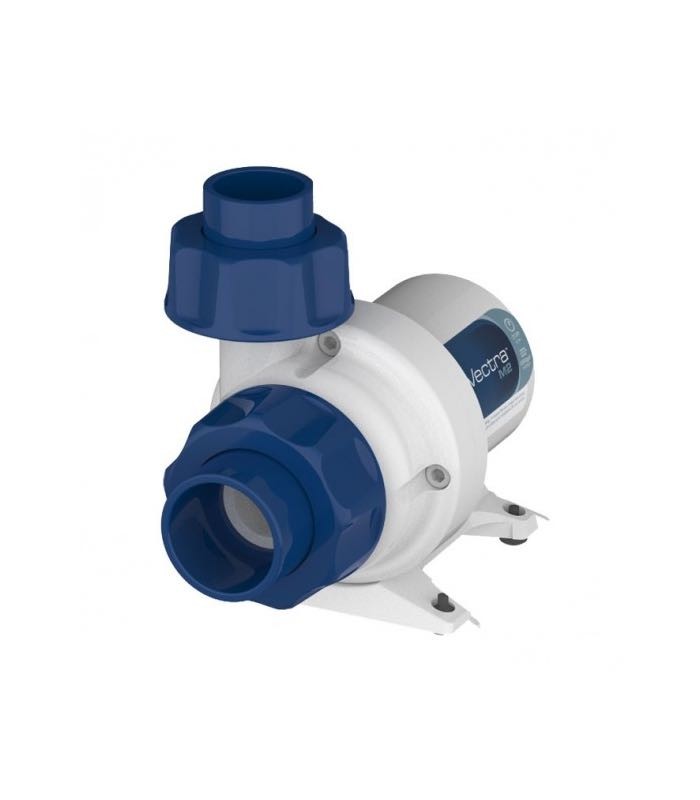

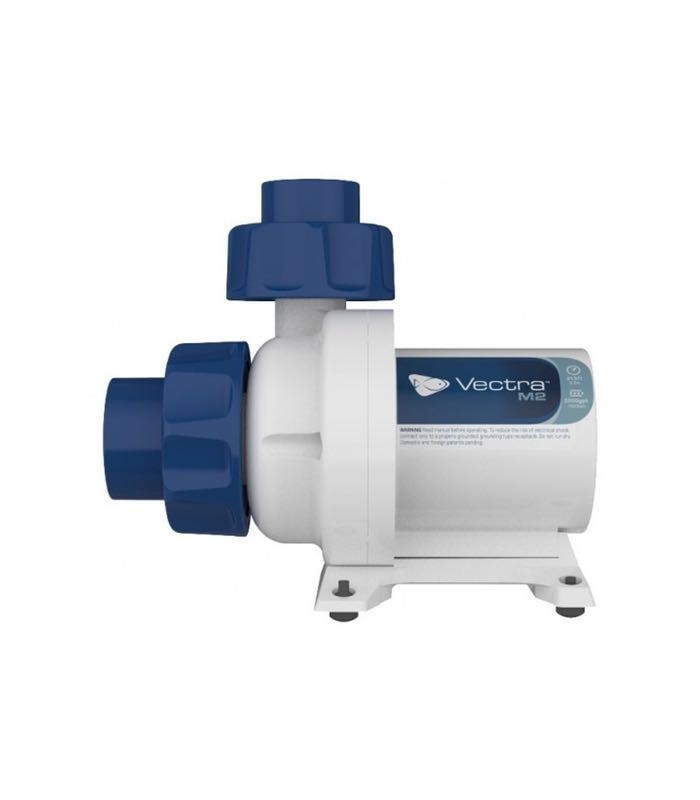

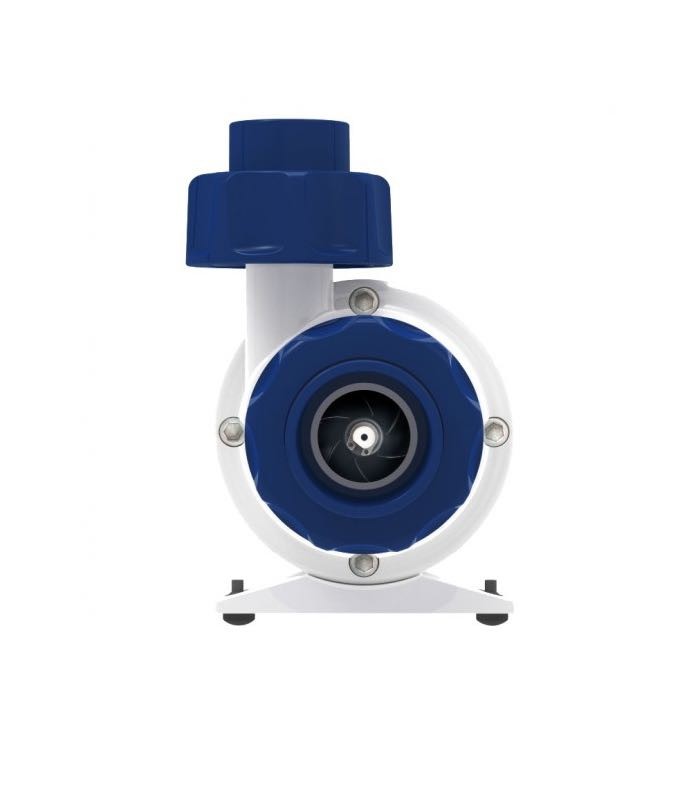

EcoTech Vectra M2 DC Water Pump (7500 LPH)

EcoTech Vectra M2 DC Pump

EcoTech Vectra M2 is a smart DC water pump with QuietDrive technology. The pump can be used as return or closed-loop pump, both in an inline or submersible application.

EcoTech Vectra M2 is a silent, quiet pump. Thanks to QuietDrive technology, the pump runs whisper quiet with minimal vibration, and does not impose unnecessary stress to your aquarium system.

The EcoTech Vectra M2 can be used as a standard Return pump or Closed loop pump. When in a closed loop application, you can utilize the same EcoSmart modes that made their Vortech pumps so outstanding.

Specifications:

The technical specificatons of EcoTech Vectra M2 DC Pump:

• Max Flow: 7500 LPH
• Max Head Height: 21.5 feet
• Footprint: 4.5 in L x 7.5 in W
• Input Fitting*: 1.25 in (31.75mm)
• Output Fitting*: 1 in (25mm)
• Power Supply: 96W

* Input and output fitting are compatible with standard PVC pipe.

Key Features

• Return Pump or Closed Loop application
• Inline or Submersible setup
• Quiet Drive Technology
• Easy Maintenance with Quick Couplers
• Improved Thermal Management
• Controllable Flow up to 2000 GPH / 7500 LPH
• Closed Loop or Return Pump
• No Compromises and Second to None

Inline or Submersible

Vectra pumps feature a sealed motor and magnetic drive for internal and external operation as a return pump for Closed Loop flow. The Vectras flexibility will fit your needs for just about any setup that you wish to achieve.

Return Pump or Closed Loop

The Vectra can be installed and operated as either a return pump or as closed loop flow pump.

• Two distinct operational configurations
• Return Pump features calibration and Speed Lock
• Closed Loop features random and pulsing modes

EcoSmart Live Compatible

EcoSmart Live is EcoTech Marine’s web-based aquarium command center. It allows you to control your Vectra pumps, VorTech pumps and Radion LED lighting from anywhere in the world through a computer or mobile device (iOS and Android supported). EcoSmart Live is loaded with features such as setup guides, flow and lighting wizards, specialty modes, and the ability to create new modes with just the click of a mouse or tap of a finger.

Get real time information about your lighting and pumps or wirelessly update your product’s firmware. Having issues getting the coral growth that you expect? Our award winning customer service staff can log into your account and suggest changes for you.

Battery Backup Compatible

In an aquarium with no flow, fish and corals begin to die in as little as 4 to 10 hours (estimated and will vary depending on battery life, pump mode, and other factors.). The Battery Backup is reef tank insurance in an aluminum housing.

By adding the Battery Backup, your tank is insulated from power interruptions, helping protect your valuable investment -and your tank inhabitants.

Cost Savings of DC Technology

Traditional AC pumps, when used as a return pump for your sump, are flow controlled through the use of a choke valve. This method of control is inherently inefficient for two reasons. 1) The AC pump purchased must often be overpowered for your given setup to allow for flexibility. 2) By adding artificial impedance to your flow, electricity is wasted.

The Vectra pump will always operate at the optimum efficiency because there is no need to use a flow restricting valve to achieve your desired flow rate.

Package

• 1x EcoTech Vectra M2 DC Pump
• 1x Vectra QuietDrive Driver
• 1x Driver Mounting Bracket
• 1x Power Supply
• 1x Input Quick Coupler
• 1x Output Quick Coupler
• 1x Driver Mounting Bracket
• 1x Instructional Manual
